Trackless
Trackless Municipal Tractors
One machine that does it all
Designed to handle jobs in every season
Built to withstand severe conditions
Engineered and assembled in North America

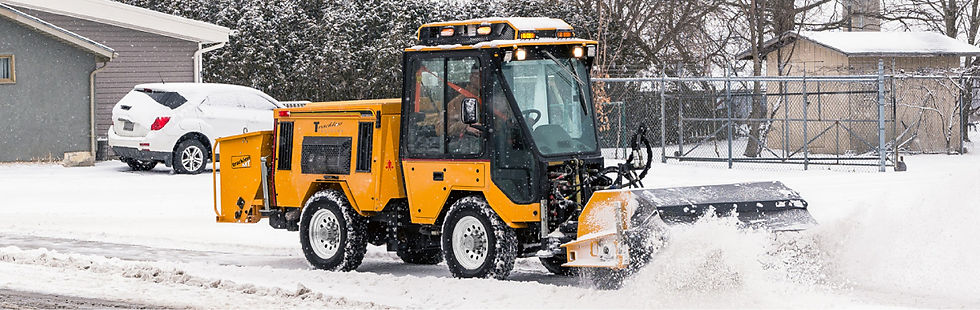

Perfect for municipalities that want to accomplish more with the same machine, the Trackless MT7 tractor completes jobs ranging from plowing snow and sweeping sidewalks, to mulching leaves, mowing grass, milling asphalt, and much more. With a 74 HP engine and a compact design, this tractor has the power take on large projects but is nimble enough to work in confined areas.
Rotary Finishing Mowers
Rotary Finishing Mower
Deck: 72" (1828mm) x 3/16" plate, rear discharge
Spindles: 3 -7 x Timken bearings, greaseable
Blades: 3 -7 x 25" x 2½" x 1/4" high lift
Casters: 4 - 10 swivel with 4" x 10" pneumatic tires
Drive: PTO to right angle gear box, 2 V-belts
Cutting Heights: 1 ½" to 4" in ½" increments
Cutting Tip Speed: 18,500 f.p.m. @ 2,200 engine r.p.m.
Wings: 24" (609mm) or 48" (1219mm)
Caster: 1 x 4" x 10" pneumatic on 24" wing; 3 on 48" wing
Roller: 1 gauge on 24" wing only
Lift Cylinder: Hydraulic x 2" x 8"
Rotor Speed @ 540 PTO: 1,780 rpm
Hinge: Compound - 110º ARC
Progressive Turf Mower
Deck: Main deck is PTO driven, each wing is hydraulic driven
Deck Construction: 3/16" steel plate deck construction
Cutting Height: 1 ½" to 5"
Wings: Automatic hydraulic shut-off valves when wings are lifted
Cutting Blades: 7
Wheels: solid urethane and puncture proof
Rollers: 2 anti-scalp rollers on centre deck
Front Flail Mower
Cutting Width: 74"(1880mm)
Cutting Height: 1" to 4" (25mm to 102mm)
Gauge Wheels: 2 -16" x 4" Laminated
Gauge Roller: 6" diameter steel, full width
Rotor Tube: 4" diameter with 1-7/16" shaft
Blades: 33 -23/4" wide (can be resharpened)
Blade and Rotor Cutting Diameter: 18"
Number of Cutting Blades: 32
Drive: PTO, gearbox, cross shaft, 2 V-belts with spring-loaded idler pulley
Rear Deflector: Reinforced rubber
Linkage: Flexible for uneven ground
Rotor Speed @ 540 PTO: 1,780 rpm
Blade Tip Speed@ 540 PTO: 8,380 ft./min
Boom Flail Mower
Width of Cut: 43 ½" (1105mm); overall width of head 53 ½" (1359mm)
Horizontal Reach: 13 ½-feet from center of MT to outside cut
Below Grade Cut: 53" (1346mm)
Vertical Reach: 13 ½-feet (4115mm)
Overall Level Ground Cutting Coverage: 11-feet, starting 5" inside outer tire
Number of Cutting Blades: 32
Spray Arm
Joystick Controls: Lower Boom Arm - (Hydraulic)
Upper Boom Arm - (Hydraulic Rotary Actuator)
Watering Head tilt - (Electric Actuator)
22" Side Shift - (Hydraulic)
180 Degree Boom Rotation - (Hydraulic Rotary Actuator)
Mounted: Front
Operation: Left & Right Side
Horizontal Reach: Out to 12 Feet
Max Watering Height: 11 Feet
Watering Presets: 10
Stump Grinder
Cutting Head: Hydraulically driven
24" diameter
34 carbide bolt on teeth
Cutting Speed: 850 rpm
Cutting Range: Swing arc 80º
15" above ground
14" below ground level
Hitch System: For Trackless MT series tractors only
Leaf Loader
Throat Opening: 72" (1828mm) x 35" (889mm)
Mulching Rotor: Full width with 24 knives
Beater Bar Feed Roller: 18 pairs of spring base type tines
Intermediate Feed Roller: 32 tines, eccentric rotation
Cross Augur: 14 inch diameter
Blower Fan: 32" (813mm) x 7" (178mm) with 6 replaceable paddles and knives
Drive Protection: Torque limiting clutch on PTO shaft, over running clutch in gearbox
Drive: PTO driven rotor and blower fan, hydraulic driven beater bar feed roller, intermediate feed roller, and cross auger
Power Angle Sweepers
Sweeping Width: 5' (1524mm)
6' (1828mm)
7' (2133mm)
8' (2438mm)
3' (914mm) and 4' (1219mm) made to order*
Overall Width: Sweeping Width + 10" (254mm)
Broom Diameter: 32" (812mm)
Angling Mechanism: Self-centering scissor frame
30º left or right
Power / Drive: Direct hydraulic drive with relief valve
Pickup Sweeper
Sweeping Width: 4' (1219mm)
Broom Diameter: 32" (812mm)
Casters: 3 swivel casters, hard urethane tires
Dump: Bottom gate, hydraulic controlled
Drive: PTO to gearbox, shaft to right side, 60 chain to broom sprocket
Capacity: Approximately 6 cubic feet
Infrared Asphalt Heater
Heating Pan Area: 4' (1219mm) x 6' (1828mm)
Heating Elements: 11
Deflector Shields: 8 stainless steel
Insulation: 5" thick ceramic
Control Panel: LED Screen
Cycles, hertz
Cycle time
Cycle start button
Timer jog
E-stop
Generator Output: 45 KW, 175 amp
Receptacles: 110V and 220V
Outside Skid Shoes: 2
Fence: 4' (1219mm) high surrounding tractor and generator
includes gate
Twin Augur Snowblower
Available Widths: 51" (1295mm)
60" (1524mm)
70" (1778mm)
80" (2032mm)
Housing: 38" high with 3/8" end plates
Augur: 2 - 13" spiral with ice picks
Impeller: 6" x 24" - 4 blades
Housing Liner: 2- piece replaceable
Turntable: Ball bearing
Chute Rotator: Hydraulic motor
Chute Deflector: Hydraulic cylinder controlled
Cutting Edge: 6" x 3/8" hardened reversible
Shear Bolts: On auger drive and main PTO drive
Adjustable Cutting Height: Using top link
Horsepower rating: 125 HP
Ribbon Snowblower
Available Widths: 51" (1295mm)
60" (1524mm)
Housing: 38" high with 3/8" end plates
Augur: 1 - 28" dia. ribbon with ice picks
Impeller: 7 ½" x 24" dia. - 5 scoop blades
Housing Liner: 2- piece replaceable
Cutting Edge: 6" x ½" hardened reversible
Shear Bolts: on augers and main PTO drive
Adjustable Cutting Height: Using adjustable shoe brackets
Skid Shoe: Free pivoting 1 ½" thick hardened
5-Position Folding V-Plow
5 Position Sizes: 50" (1270mm) - Left
50" (1270mm) - Right
57" (1447mm) - Straight
53" (1346mm) - V
47" (1193mm) - Scoop
Plow Angle Left or Right: 30º
Hydraulic Cylinders: 2 - double acting
Outside Skid Shoes: 2
Center Skid Shoe: 1
Cutting Edge: 2 - 6" x 5/8" thick hardened steel
