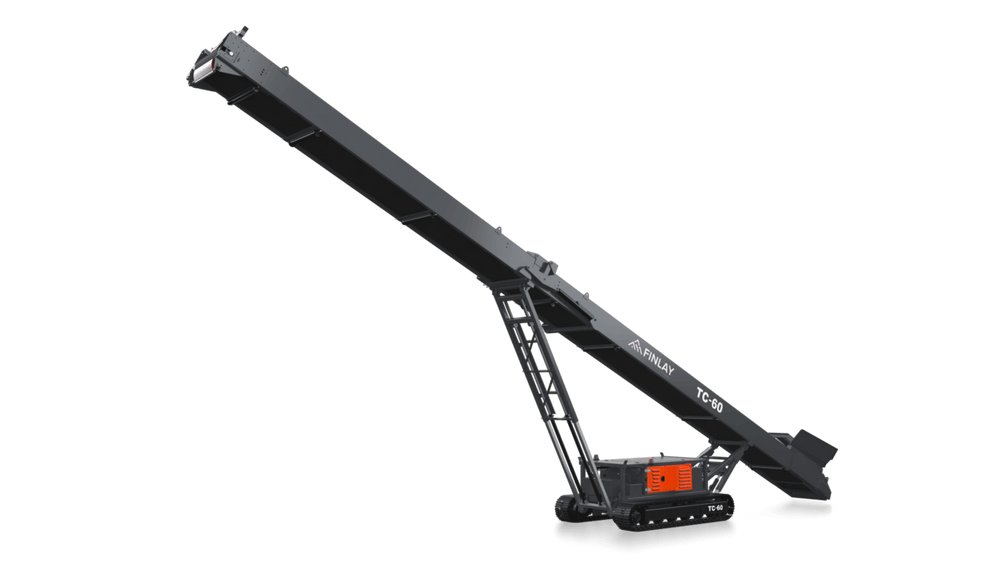

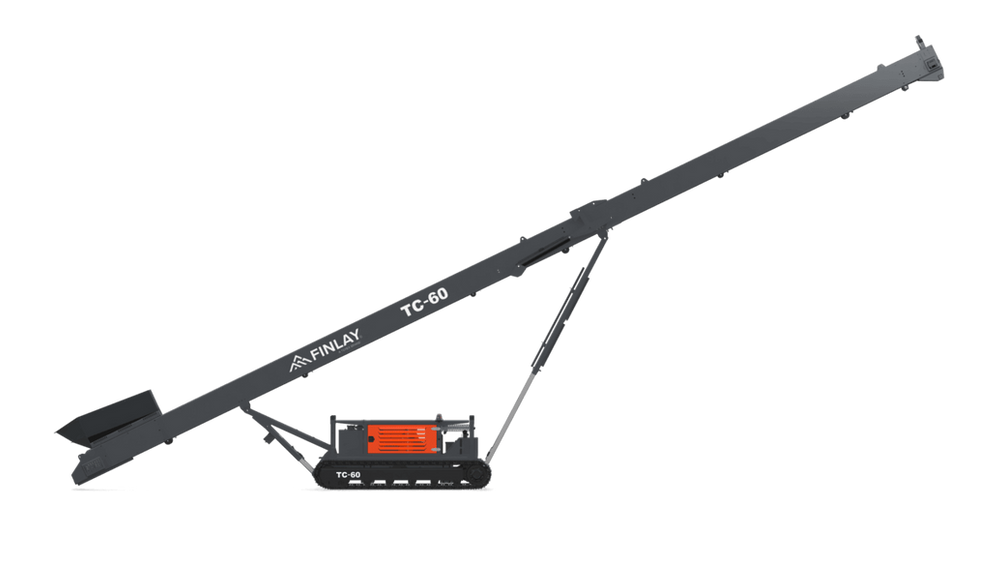

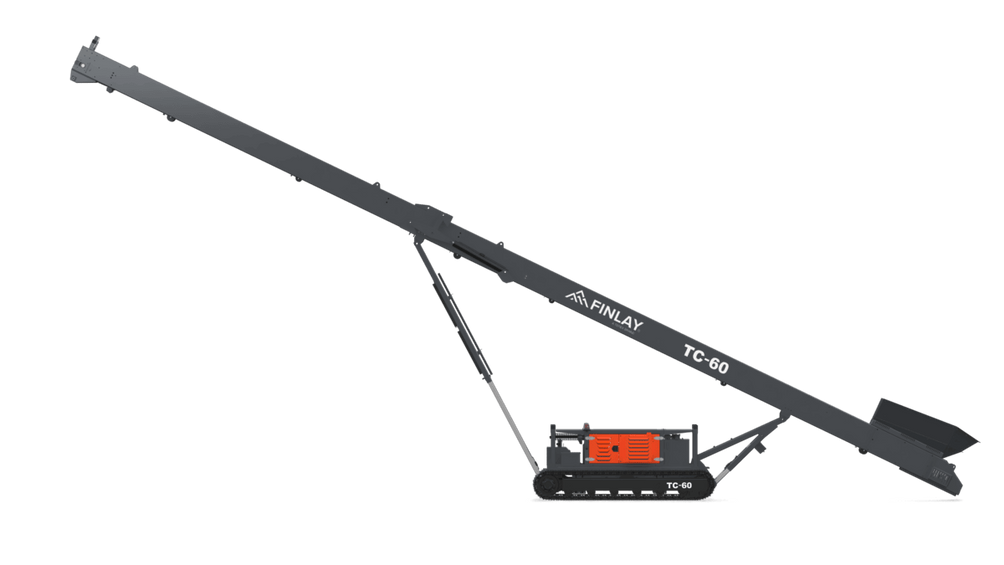

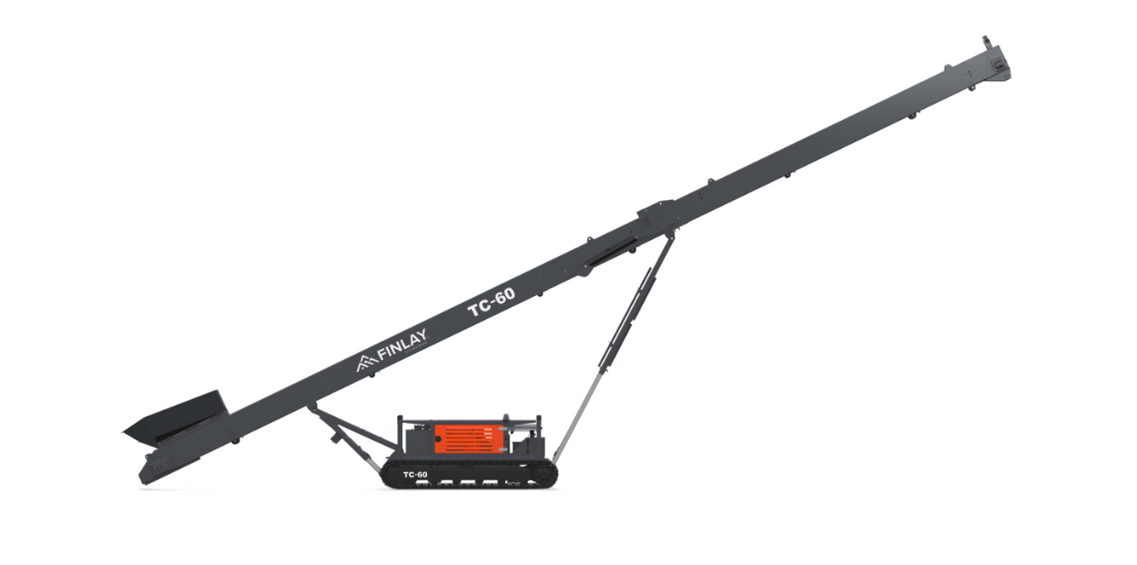

The Finlay® TC-60 is a highly versatile tracked stacking conveyor designed for efficient stockpiling and material transfer. With a 60-foot conveyor, enhanced feedboot options, and fully remote-controlled operation, it delivers up to 500 TPH, making it ideal for high-capacity operations across quarrying, mining, and recycling applications.
Key Features:
Throughput capacity up to 500 TPH, depending on material and conditions
Variable discharge height up to 8.16 m (26’ 9”) and stockpile volume up to 1002 m³ (1311 yd³)
900 mm (36”) wide belt with plain or chevron options
Full dog lead remote control, hydraulic folding head, and heavy-duty crawler tracks for enhanced mobility and ease of setup
Compact transport dimensions with a total weight of 9,000 kg
Available with dual power options and Stage V engines for emission compliance
Optional rubber or Hardox-lined feedboot extensions and heavy-duty belt upgrades
Tracked Stacking Conveyor
TC-60
Conveyor Length: 18m 30cm
Belt Width: 900mm
Max Discharge Height: 8m 16cm
Transport Weight: 9000kgs
Max Capacity: 1002m3
The Finlay® TC-60 is a highly versatile tracked stacking conveyor designed for efficient stockpiling and material transfer. With a 60-foot conveyor, enhanced feedboot options, and fully remote-controlled operation, it delivers up to 500 TPH, making it ideal for high-capacity operations across quarrying, mining, and recycling applications.
